Ozongaskonzentrationsdetektor

Product features: waterproof and dustproof instrument housing, can be installed and used outdoors, protection level IP65, equipped with waterproof power supply and signal aviation connector.

Product features: This ozone gas concentration analyzer has an automatic zero adjustment function. According to the reference light data when zeroing without ozone gas, the internal PID automatically adjusts the brightness of the ultraviolet LED light source to stabilize the zero point within a certain numerical range. This Ozone Gas Concentration Detector has a built-in zero calibration device, which can automatically calibrate the zero point according to the time set by the user. Zero calibration can also be performed when ozone gas is introduced to ensure the stability of the zero point. This automatic zero calibration process is an invention patent of our company. This wall-mounted ozone gas concentration analyzer can run continuously for 24 hours without stopping. It is mainly used for detecting the ozone concentration at the outlet of the ozone generator or the ozone concentration in the exhaust gas.

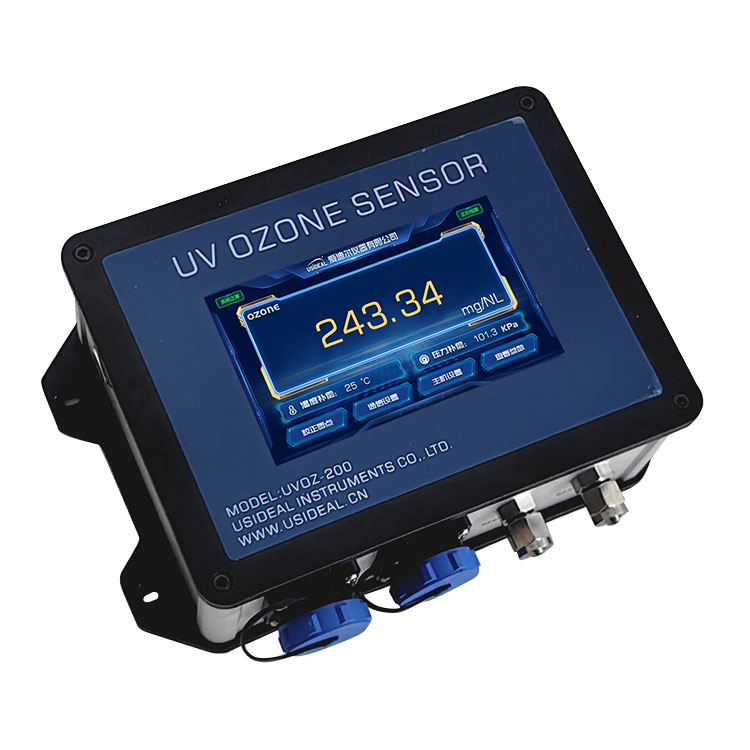

USIDEAL® UVOZ-200 Ozone Gas concentration detector - Product Overview

This ozone concentration analyzer adopts a dual-path ultraviolet light source system, and is equipped with an ultraviolet LED light source management system. According to the reference light data when zeroing in ozone-free gas, the internal PID automatically adjusts the brightness of the ultraviolet LED light source, so that the zero point is stable within a certain numerical range, and the ultraviolet LED lamp can reach the measurement state within 1 minute after starting up. The separated gas chamber and light pool design structure is adopted. The gas chamber has the characteristics of no leakage, high pressure resistance, resistance to large flow ozone gas impact, easy cleaning, convenient maintenance, simple operation, and low cost of use. It is mainly used for continuous detection of ozone gas production concentration in various industrial environments, measuring the outlet concentration of the ozone generator, and calculating the dosage output of the ozone generator. It can also be used for analysis and detection of ozone gas concentration in pipelines and containers.

Features of this ozone concentration analyzer: with a touch screen operation interface, it can display the concentration of ozone gas in real time, with pressure and temperature compensation and display, and can set automatic zeroing time and manual zeroing mode. Customizable data storage and recording functions. The core sensor components use the foreign USIDEAL brand ultraviolet LED light source, foreign long-life photoelectric receiver components, dual optical path sampling structure, air chamber sealing structure, air chamber and light pool structure independently designed and developed by foreign instruments, with the characteristics of pressure resistance and impact resistance, and the use of independent light pool and air chamber structure, which is easy to maintain and replace. It has the function of automatic zero correction to ensure the stability of the zero point and prevent the zero point deviation from affecting the accuracy of the detection concentration. The gas flow, pressure and flow rate remain unchanged during the zeroing operation of the instrument to prevent the impact of airflow on the zeroing. The zeroing operation can be completed without shutting down the ozone intake, ensuring that the ozone concentration analyzer runs continuously 24 hours a day.

Application areas: ozone generator manufacturers, municipal water industry, industrial sewage industry, fine chemical industry, food and drinking water industry, space disinfection industry, swimming pool disinfection industry, flavor synthesis industry and other industries using ozone generators.

USIDEAL® UVOZ-200 Ozone Gas Concentration detector - Product Features:

Measurement features: patented process, with automatic zero adjustment function, dual-path ultraviolet absorption principle, foreign long-life ultraviolet LED light source, can run continuously, and ensure the stability of the detected concentration.

Test method: dual-path ultraviolet absorption method, long-life light source system, high measurement accuracy.

Measurement principle: According to the Lambert-Beer law, accurate measurement through the principle of photometric absorption.

Light source system: foreign long-life ultraviolet light source system (ultraviolet LED light source (with lens)), free warranty for 2 years.

Usage: It is recommended to install and use indoors, equipped with waterproof aviation plug.

Light pool system: separate light pool technology, no leakage, high pressure resistance, and resistance to large flow sampling gas impact.

Intelligent compensation: built-in temperature and pressure compensation and display, with automatic light source compensation function.

Operation mode: manual zero calibration mode, the light source brightness can be adjusted in real time according to the zero value to ensure the stability of the zero point.

Display unit: g/Nm3, mg/NL, %WTair, %WTo2 optional;

Data display: high-definition color touch screen, real-time display of ozone concentration, temperature, pressure, data parameters, etc.

Output function: 4-20mA, RS485 communication.

Standard configuration: anti-corrosion flow meter, ozone exhaust destructor, air intake filter.

USIDEAL® UVOZ -200 Ozongaskonzentrationsdetektor - Technische Parameter
